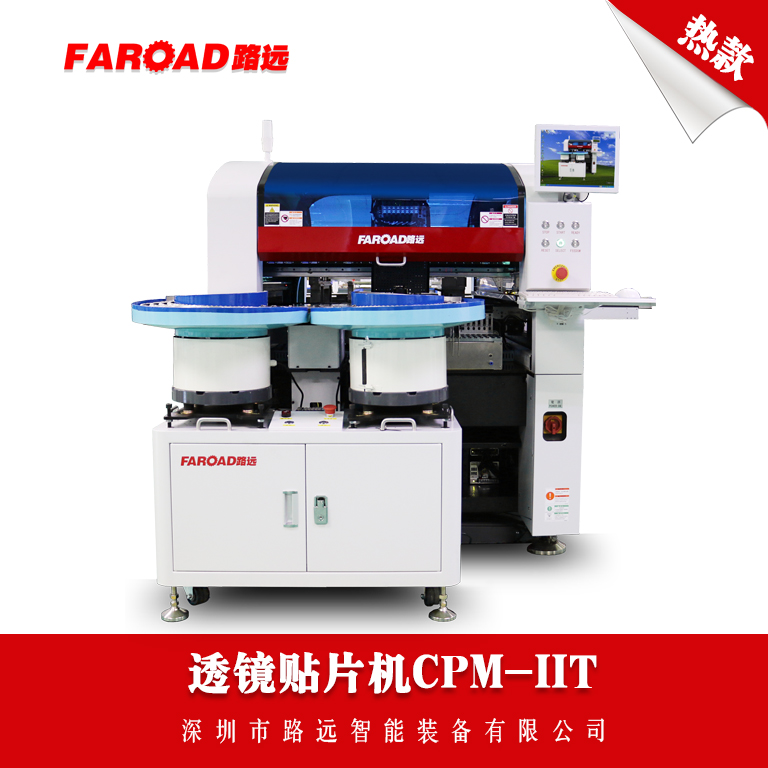

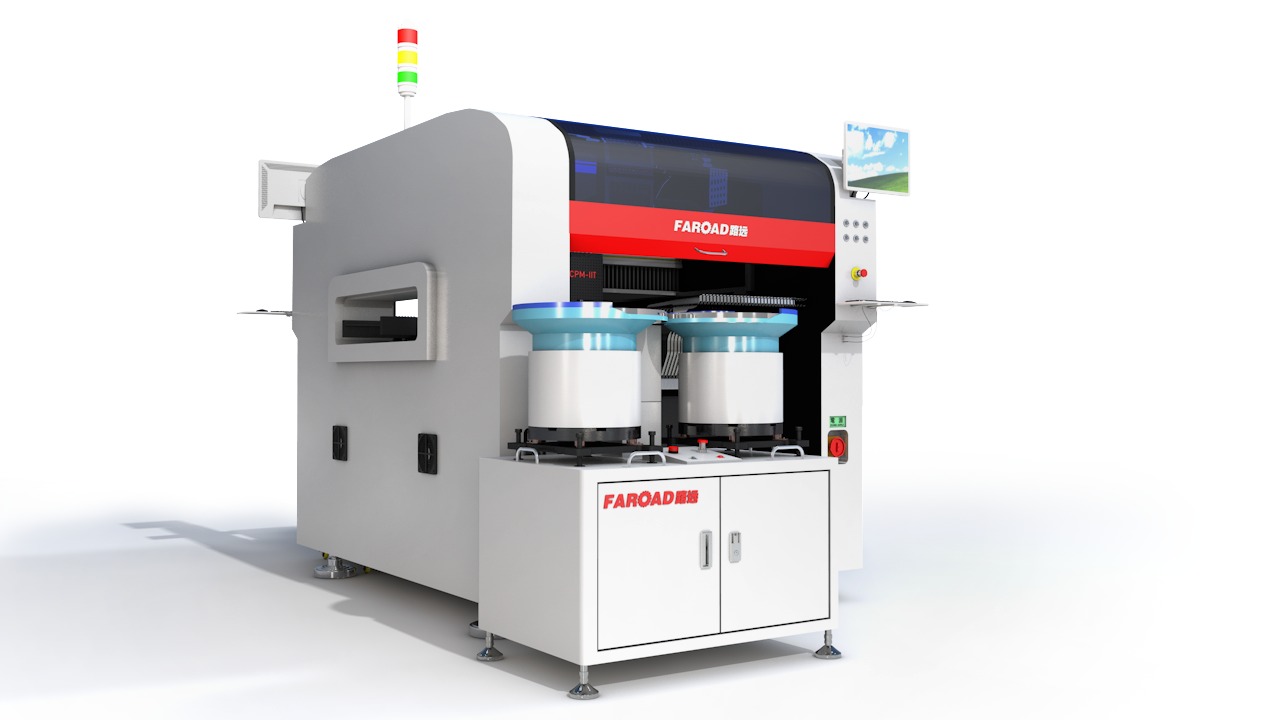

路远FAROAD CPM-ⅡT透镜贴片机
Faroad CPM-ⅡT Lens Pick and Place Machine
日本山洋直线电机使用设备达到更高精密更低磨损;
德国先进工业线性扫描相机实现零时差零停顿的高精密元件识别;
8通道自主开发高端震动供料系统;
高精密热补偿系统实现实时监控贴装精度并自动修正;
吸嘴自动切换实现多种类元件同时兼容;
电机进料器,保证送料更精准,解决供料不稳定所产生元件丢弃;
可贴装出透镜之外的其他线路板电子元器件;
中英文界面零时差一键切换,更广泛应用于国际市场。
Equipped with Japanese Sanyo linear motor owning higher accuracy and lower abrasion.
Advanced Germany industrial linear scanning camera can achieve high-precision recognition of the component without mistiming and stopping.
Seif-developed high end vibratory feeding system with 8 feeding channels.
High accuracy thermal compensation system can monitor the placement precision in real time and modify the placement automatically.
Nozzles exchanged automatically ensures various components can be compatible.
Using electric feeder ensure the higher accuracy of feeding process, solving the component dump caused by unstable situation.
Fast switching between Chinese and English interface is more suitable for the international market.
Applicable to other PCB components not only in Lens.
参数规格 Parameter specification
贴装速度 |
20000chips/h |
贴装精度 |
±0.05mm |
透镜尺寸 |
5~30mm |
基板尺寸 |
最小50mm×50mm,最大1200mm×410mm |
基板厚度 |
0.8mm~5.0mm |
基板重量 |
0.68-3Kg |
工作头 |
8 |
料站数量 |
16站 |
适用元件 |
从0201微小芯片~30mm大元件及各种电阻、电容、IC,BGA等。 |
夹板方式 |
侧夹加上下夹 |
对中方式 |
扫描对中 |
电源 |
AC380/420/480V |
空气源 |
0.5~0.8Mpa |
控制系统 |
中英文操作界面Windows系统控制平台 |
设备尺寸 |
L1980mm×W2350mm×H1550mm |
重量 |
2050Kg |
