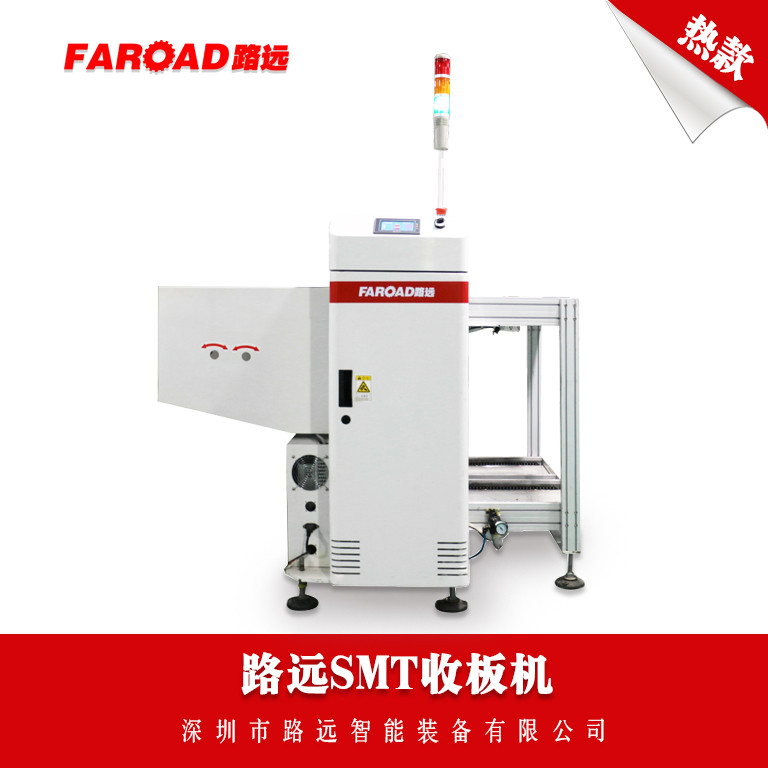

路远LY-250G-D收板机
Faroad LY-250G-D Unloader
专用铝型材导轨及专用千鸟型塑胶链条
90W台产刹车马达驱动采用滚珠丝杆使Magazine步进升降
气动夹件结构
具有自动收板功能
操作控制面板为显控真彩触摸屏
三菱PLC可编程控制器控制
附带0.7M长的推板Conveyor一套
Specialized aluminium guide rail and plastic roller chain
Taiwan-made 90w step motor driver adopts the ball screw to control the rise and down of magazines.
Pneumatic clamping structure.
Automatic magazine change-over.
user-friendly “soft touch” LED membrane control panel.
Mistubishi PLC programmable.
With one set of 0.7m conveyor belt.
参数规格 Parameter specification
|
方向 |
右至左/左至右 |
|
升降平台节距选择 |
10,20,30,40 |
|
Magazine规格 |
L355*W320*565mm |
|
PCB最大规格 |
L330*W250 |
|
满载储板数量 |
50PCS |
|
电源 |
220V 50HZ |
|
气源 |
0.4-0.6MPa |
|
外型尺寸 |
L1700*W780*H1200±30mm |
|
赠送 |
电控箱一套 |
Parameter specification
|
Transport Direction |
L→R/R→L |
|
Pitch Distance |
10,20,30,40 |
|
Magazine Size |
L355*W320*565mm |
|
Max PCB Size |
L330*W250 |
|
Magazine Capacity |
50PCS |
|
Power |
220V 50HZ |
|
Air Source |
0.4-0.6MPa |
|
Machine Dimension |
L1700*W780*H1200±30mm |
|
Gift |
Electric control box/se |
