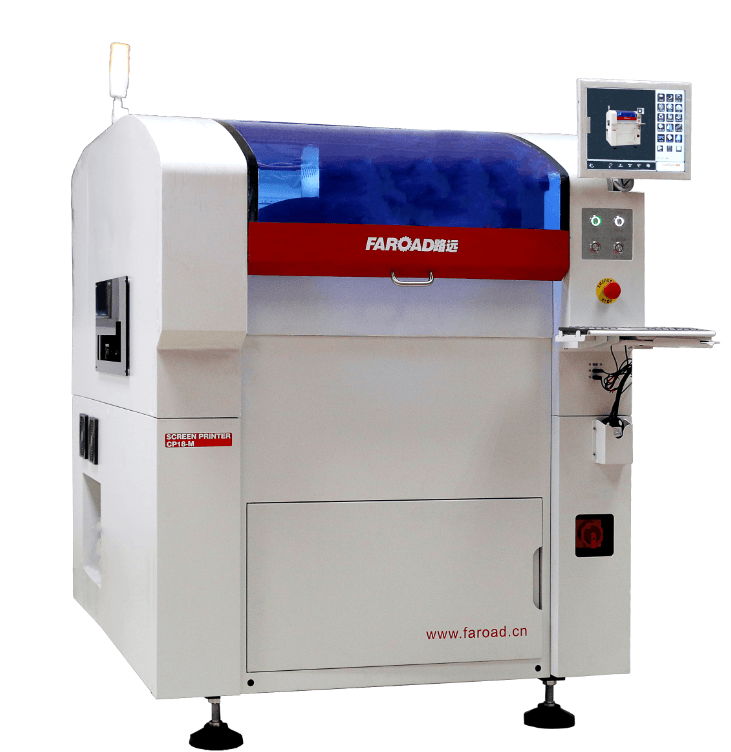

路远全自动视觉印刷机CP-18-M
Faroad Full-Automatic Solder Paste Printer CP-18-M
机器特点
Machine features
专用高刚性UVW模组驱动机构及倒三角Z轴升降机构调整平台，可以快速实现不同厚度PCB板的PIN针顶升高度的自动调节。
The special high-rigidity UVW module drive mechanism and the inverted triangle Z-axis lifting mechanism adjustment platform can quickly realize the automatic adjustment of the PIN rising height in different thickness PCB boards.
自动清洗系统；大功率风机加文丘里真空发生装置抽真空；干﹑湿﹑真空三种清洗方式,并可任意选择自由组合
Automatic cleaning system; high-power fan plus Venturi vacuum generating device vacuum; dry, wet, vacuum three cleaning methods,and can be freely combined.
全新的光路系统，均匀的环形光和高亮度的同轴光，配以无极调节亮度的功能，使得各类型的Mark点均 可很好的识别。
The new optical system, uniform ring light and high-intensity coaxial light, combined with the infinitely adjustable brightness function, make all types of Mark points well recognized.
简单易用的图形化中/英文操作界面
Graphical Chinese/English interface make it easy to use
2D锡膏印刷质量检查和SPC分析
2D solder paste inspection and SPC analysis.
参数规格
Technical Parameter
|
基板尺寸(X Y) |
最大450mm x 350mm，最小50mm x 50mm |
|
Basic board size（X Y） |
Max 450mm x 350mm，Min 50mm x 50mm |
|
PCB厚度 |
0.6mm~14mm |
|
PCB thickness |
0.6mm~14mm |
|
翘曲量 |
Max. PCB对角线 1% |
|
Warpage |
|
|
最大板重量 |
10Kg |
|
Maximum board weight |
10Kg |
|
传送速度 |
1500mm/秒(Max) |
|
Transfer speed |
1500mm/s（Max） |
|
传输方式 |
一段式轨道 |
|
Transfer mode |
One phase rail |
|
模板框架尺寸 |
370mm x 470mm~737 mm x 737 mm |
|
Template frame size |
370mm x 470mm~737 mm x 737 mm |
|
最大印刷区域 (X x Y) |
450mm x 350mm |
|
Maximum printing area (X x Y) |
450mm x 350mm |
|
刮刀类型 |
钢刮刀/胶刮刀(角度45°/55°/60°按印刷工艺匹配选择) |
|
Squeegee type |
Steel/Glue/(angle 45°/55°/60°matching the printing process) |
|
脱模长度 |
0.02 mm 至 12 mm |
|
Demoulding length |
0.02mm – 12mm |
|
平台调整范围 |
X,Y:±7.0mm,θ:±2.0° |
|
Platform adjustment range |
X,Y:±7.0mm,θ:±2.0° |
|
摄像机系统 |
单独照相机，向上 / 向下单独成像视觉系统,几何匹配定位 |
|
Camera system |
Independent camera upwards/downwards imaging vision system，geometric matching location |
|
影像校准重复精度 |
±12.5微米 (±0.0005") @6 σ，Cp 大于或者等于 2.0 |
|
Repetition precision of image calibration |
±12.5μm (±0.0005") @6 σ，Cp ≥ 2.0 |
|
循环时间 |
少于 7s |
|
Cycle time |
＜ 7s |
|
功率要求 |
AC220V±10%,50/60HZ,15A |
|
Power requirements |
AC220V±10%,50/60HZ,15A |
|
外观尺寸 |
L（1140mm）x W（1400mm）xH（1480mm） |
|
Machine dimension |
L（1140mm）x W（1400mm）xH（1480mm） |
|
机器重量 |
1000Kg |
|
Machine weight |
About 1000Kg |
