Project

LED bulb lamp aging shelf

Dimensions

2080L×680W×1400H（mm）

Quantity

One set

Equipment structure

In multistorey structure

Functional features

This equipment dedicated to aging test bulbs, observation whether energy-saving lamps for short circuit, blasting capacitance, black, etc. Simple operation, simple and convenient

The basic configuration and structure:

Machine body

The frame adopts 40 * 40 aluminum profiles produced, is divided into 4 layers, each layer height is about 280mm.

Frame table

Using 15mm compression plate cushion, the surface with white fire board, and installation E27 aging lamp holders , each layer can be also placed 120 LED bulb lamp.total of 480 pieces of LED lamp holder .

Output

The aging rack aging 480 LED bulb lamp once a time.

Casters

Installation of 4 pieces 2 inch wheels,two Vientiane Vientiane,two with brake,the convenience of customers to move .

Color

the whole set of equipment for the computer white spray.

Note：

this project quotation effective within 10 days.

Shipping and Installation

The buyer is responsible for the transportation and installation.

Explain

this equipment does not include a power line, the machine 's electrical control, and other peripheral equipment.

payment

50% in advance ,the balance before shipment .

delivery

Within 12days after receipt your deposit .

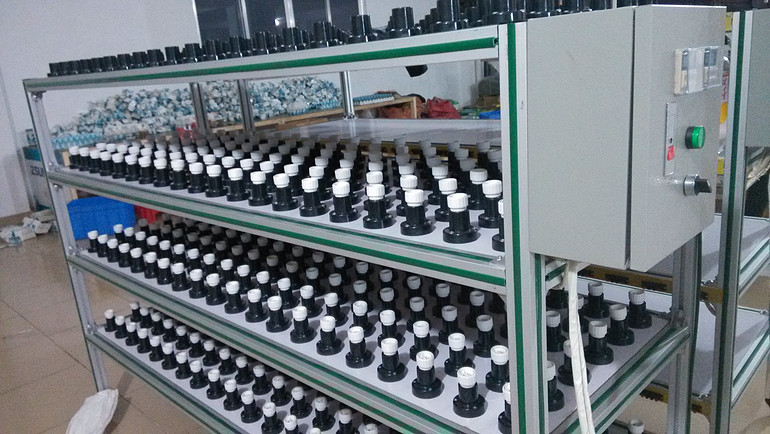

Reference picture :

Project

LED  down light  aging shelf

Dimensions

2080L×680W×1400H（mm）

Quantity

1 set/sets

Equipment structure

In multistorey structure

Functional features

This equipment dedicated to aging test bulbs, observation whether energy-saving lamps for short circuit, blasting capacitance, black, etc. Simple operation, simple and convenient

The basic configuration and structure

Machine body

The frame adopts 40 * 40 aluminum profiles produced, is divided into 4 layers, each layer height is about 280mm.

Frame table

Using 15mm compression plate cushion, the surface with white fire board, we will installed 4 audio clip at the side of aluminum,each layer can be also placed 80 piece of ceiling lamp or down-light.

Output

This aging shelf can aging 320 LED ceiling lamp or down-light once at most.

Casters

Installation of 4 pieces 2 inch wheels,two Vientiane Vientiane,two with brake,the convenience of customers to move .

Color

the whole set of equipment for the computer white spray.

Switch impact

The time relay, open, close the impact time according to customer requirements.

Note:this project quotation effective within 10 days.

Installation

The buyer is responsible for the transportation and installation.

Explain

this equipment does not include a power line, the machine 's electrical control, and other peripheral equipment.

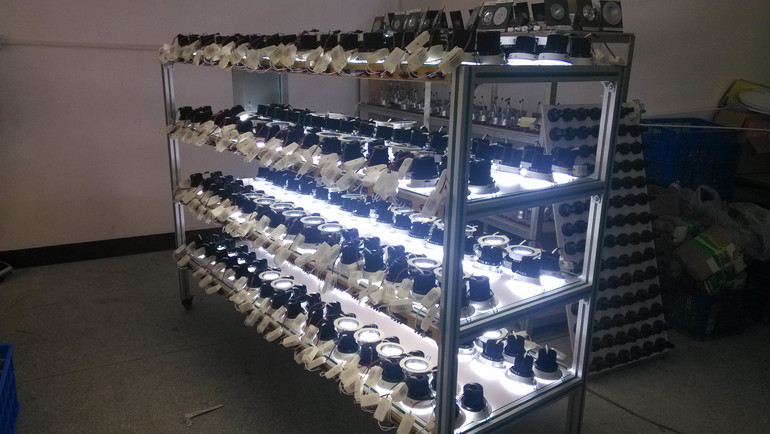

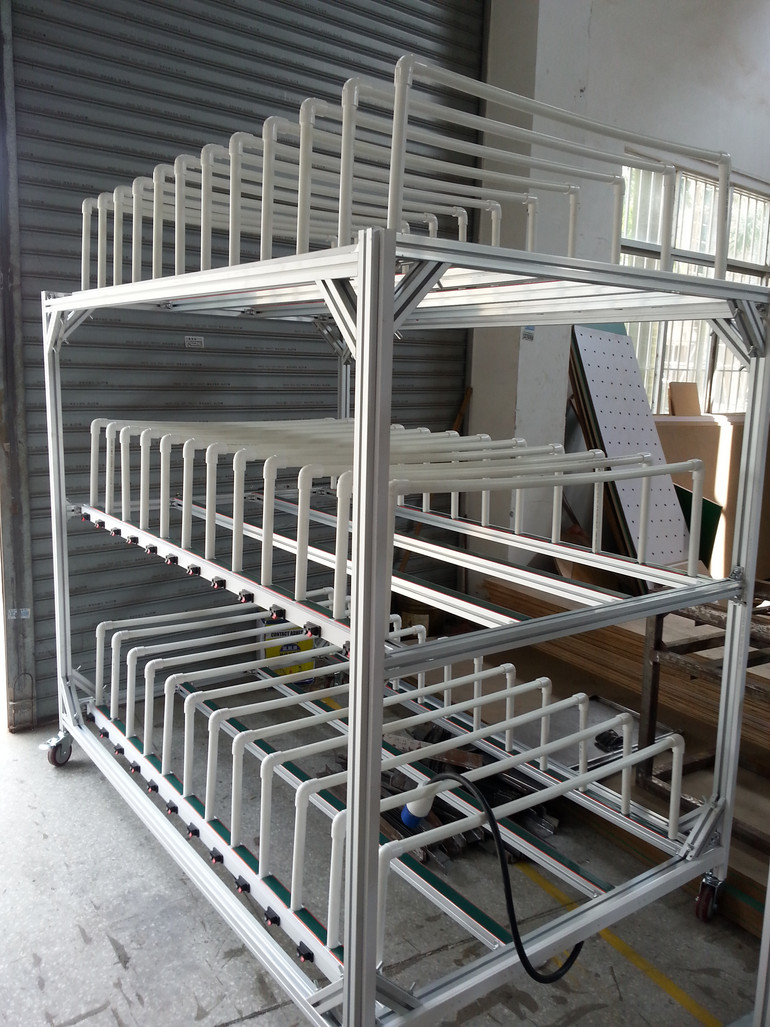

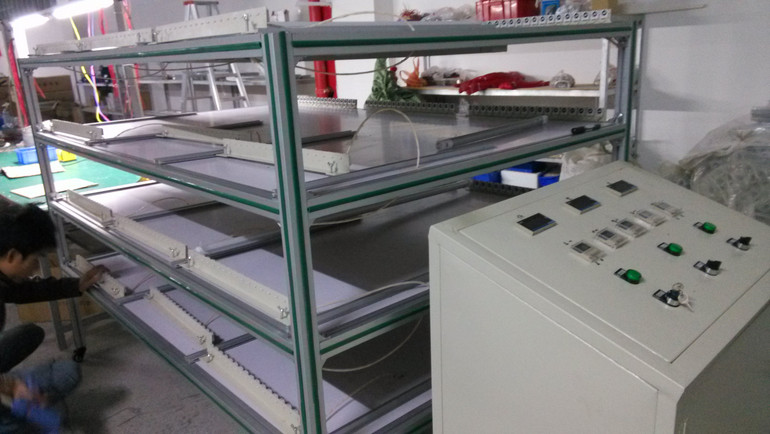

Reference picture：
