一、

Project ：

Automatic cap crimping, punch nails , testing, counting synchronous machine

二、

Dimension ：

800×800×750（mm）

三、

Quantity：

1 set

四、

Function and feature :

The special equipment for the LED lamp cap lamp and energy-saving lamp locking, rivet, try bright, count function, the automatic nail feeding, synchronization locking cap and plastic parts, lamp holder and rivet, detection, test on three processes shortened to a procedure, at the same time to improve the product quality and yield, save a lot of artificial, safety, convenience and easy to operation.

五、

specification：

Machine power:：

About 90W

Compressed air:：

About 0.6pa

Weight ：：

About 61KG

Control system：

PLC control

Nailing device：

Vibration plate, straight.

Nailing fixed device：

Special custom

Output ：

According to the degree of familiarity with employees, per minute maximum about 60

Model ：

E27

Nailing material ：

iron

The injection quantity ：

E27 with 12 injection.

Frame ：

Fuselage framework using 60 x40 square tube welded together, feet wearing use 40 x40 square tube welded together, motherboard adopts 120 mma3 production. Retainer using 5, channel steel, surface cover plate made from 1.5 cold plate bending.

Color ：

Vibration plate for primary colors, the rest of the white paint for computer processing, mechanical parts for black finish.

Warranty ：

①Lifelong telephone technical support services, mobile 24 hours 。

②warranty for one year

③Sensors, needle cylinder, lamp warranty for half a year .

accessories：

①A specification

②A set of hex tools.

③Lamp holder needle 12pcs

Payment ：

30% in advance ,the balance before shipment.

一、

Project ：

Automatic cap crimping, punch nails , testing, counting synchronous machine

二、

Dimension ：

800×800×750（mm）

三、

Quantity：

1 set

四、

Function and feature :

The special equipment for the LED lamp cap lamp and energy-saving lamp locking, rivet, try bright, count function, the automatic nail feeding, synchronization locking cap and plastic parts, lamp holder and rivet, detection, test on three processes shortened to a procedure, at the same time to improve the product quality and yield, save a lot of artificial, safety, convenience and easy to operation.

五、

specification：

Machine power:：

About 90W

Compressed air:：

About 0.6pa

Weight ：：

About 61KG

Control system：

PLC control

Nailing device：

Vibration plate, straight.

Nailing fixed device：

Special custom

Output ：

According to the degree of familiarity with employees, per minute maximum about 60

Model ：

E14

Nailing material ：

 iron

The injection quantity ：

E14 with 8 injection.

Frame ：

Fuselage framework using 60 x40 square tube welded together, feet wearing use 40 x40 square tube welded together, motherboard adopts 120 mma3 production. Retainer using 5, channel steel, surface cover plate made from 1.5 cold plate bending.

Color ：

Vibration plate for primary colors, the rest of the white paint for computer processing, mechanical parts for black finish.

Warranty ：

①Lifelong telephone technical support services, mobile 24 hours 。

②warranty for one year

③Sensors, needle cylinder, lamp warranty for half a year .

accessories：

①A specification

②A set of hex tools.

③Lamp holder needle 12pcs

Payment ：

30% in advance ,the balance before shipment.

六、

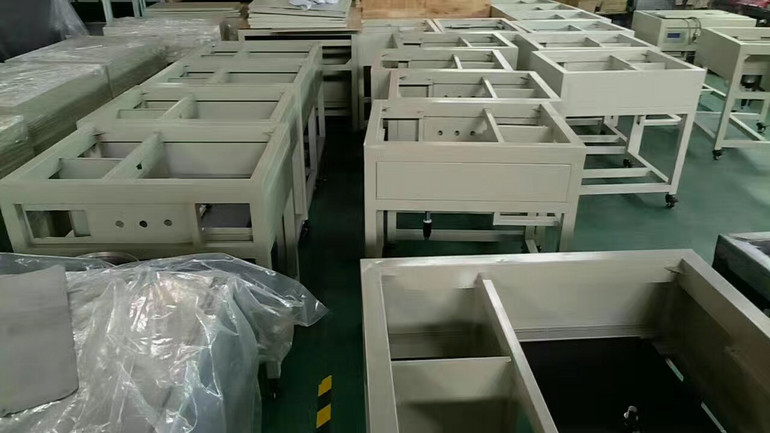

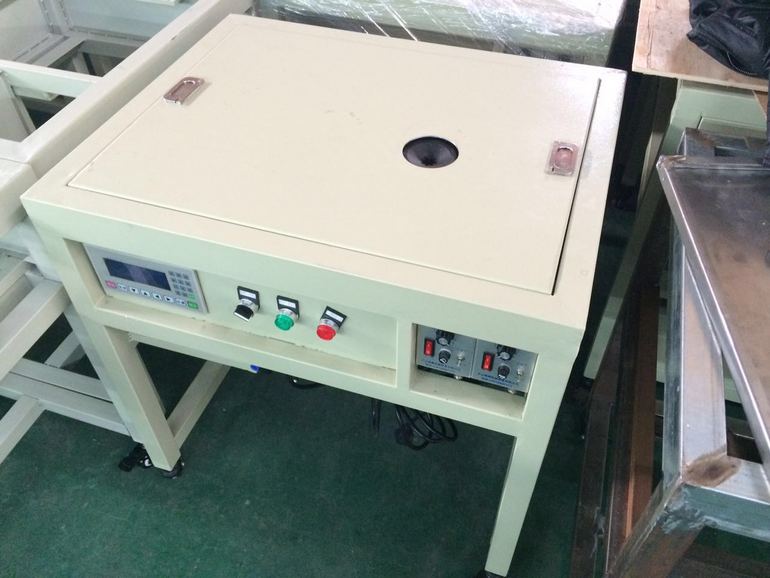

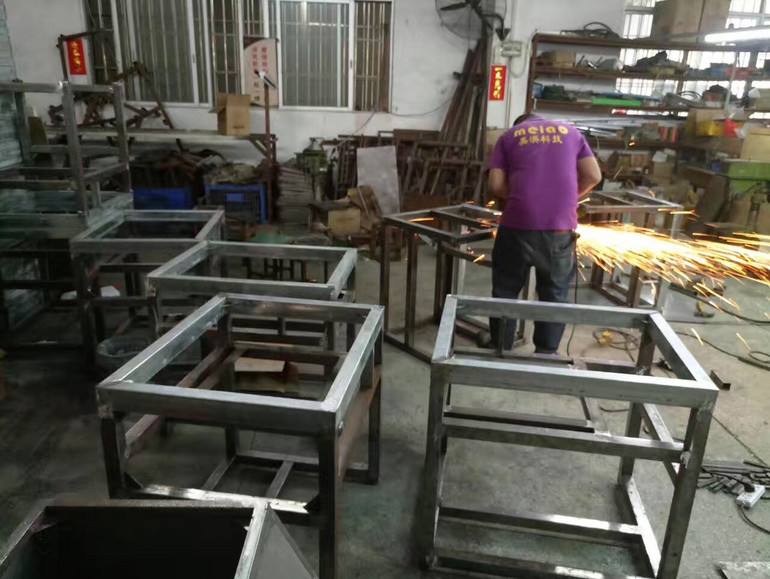

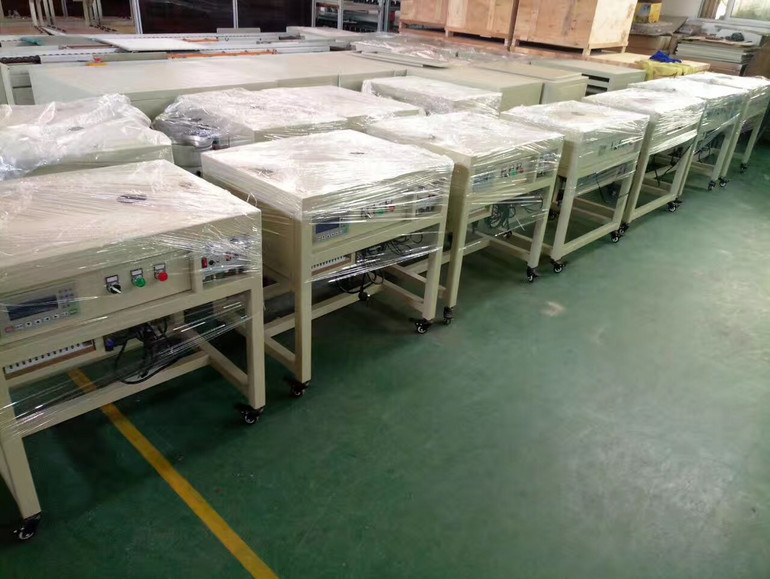

Reference picture ：
